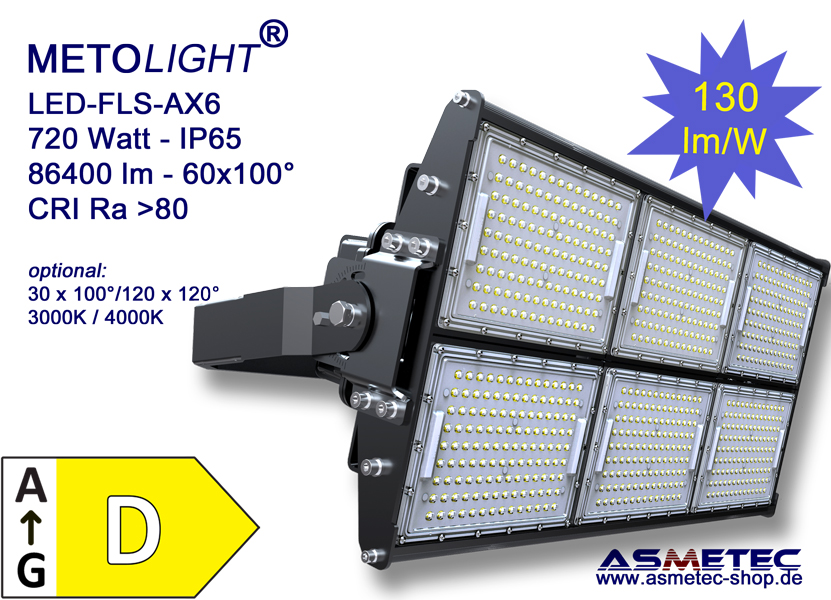

LED Flood Light FLS-AX6, 720 Watt, 86000 lm
METOLIGHT LED Floodlight FLS-AX6-CW - 720 Watt, IP65, 86400 lm
HiPower LED flood light with light beam 60 x 120°, 130 lm/W
This newly developed, compact LED floodlight is an ideal replacement for large halogen floodlights. It is compactly constructed and equipped with interchangeable LED modules of 120 watts each. The Lumileds 3030 LEDs have an efficiency of 140 lm / W at CRI Ra> 80, but are operated with a lower current. This results in lower heat and durability.
In the standard we supply this floodlight in light color cold white 6000K with front lens 60 x 120 ° for wide, largely uniform illumination of large areas, e.g. on sports grounds, arenas, stadia, parking areas etc.
Optionally, lenses 30 x 120° and 120 x 120° as well as the light colors warm white (3000K) and nature white (4000K) are available
The LED floodlight is impact resistant acc. IK10 (20 joules), the housing corresponds to IP65, the attached Meanwell HLG power supply units correspond to IP67.
The LED light is UV-free, little attractive for insects, with high color accuracy CRI Ra> 80. The energy class is corresponding to D (EU 2019).
The housing made of die-cast aluminum, black powder-coated, IP65, has an adjustable mounting bracket, which allows the floodlight to be attached easily to mounting frames and subsequently aligned.
The floodlight can be used indoors as indoor warehouse lighting and outdoors.
Applications:
The floodlight is ideal for illuminating large areas, e.g. Parking spaces, sports grounds, commercial premises.
Technical specifications:
Mains voltage: 230 VAC 50/60 HZ
Power consumption: 720 W
Light color: 6000-6500K - CRI Ra> 80
Luminous flux: 86400 lm
Beam angle: 60 x 120 °
Energy class: D (EU 2019)
Sizes: 833 x 442 x 200 mm (L x H x D)
Weight: 35 kg














Technical Data
Beschreibung | Daten / Data | Description |
Markenname | METOLIGHT | Brand name |
Modell | LED-FLS-AX6 | Model |
EAN-Nummer | EAN 4251192827531 | EAN-Number |
Lichtsystem | gebündeltes Licht/directional light - (DLS) / direkt an Netzspannung / operating on mains (MLS) | Light System |
Betriebsspannung | 220 - 240 V AC / 50/60 Hz | Input Voltage |
Gesamtleistung | 720 Watt* | 72put Power |
Verbrauch | 720 kWh/1000h* | Consumption |
Leistungsfaktor | Pf > 0,96 | Power factor |
Dimmbar? | nein / no | Dimmable? |
Lichtquelle | 756 x LED-SMD 3030 | Light Source |
LED Marke / Typ | Philips | LED brand/model |
Farblich abstimmbare Lichtquelle | nein - no | Colour tunable Lightsource |
Energieklasse - EU 2019/2015 | D | Energy Class EU 2019/2015 |
auf einer Skala von A bis G (wenig effizient) / on scale of A to G (less efficient) | ||
Photobiolog. Klasse | 1 | Photobiolog. Class |
Lichtwinkel | 60 x120° / 30 x 120° / 120* | Beam Angle |
Lichteffizienz | 130 lm/W* | Light Efficacy |
Warmweiss WW | 2800 - 3300K - 82000 lm - dominant 585 nm +/- 20 - x:0,44 / y:0,40 / u:0,25 / v:0,35* | Warm White WW |
Neutralweiß NW | 3800 - 4300K - 85500 lm - dominant 570 nm +/- 20 - x:0,38 / y:0,37 / u:0,22 / v:0,33* | Nature White NW |
Tagweiß DW | 4800 - 5500K - 86400 lm - dominant 490 nm +/- 20 - x:0,33 / y:0,35 / u:0,21 / v:0,32* | Pure White DW |
Kaltweiß CW | 5700 - 6500K - 86400 lm - dominant 500 nm +/- 20 - x:0,32 / y:0,34 / u:0,20 / v:0,32* | Cold White CW |
Hinweis Nutzlichtstrom | Der Nutzlichtstrom bezieht sich auf Messung im breiten Kegel von 120° - The useful luminous flux refers to measurement in wide cone 120 ° | Note Luminous Flux |
Farbkonsistenz | <= 6McAdams | Colour Consitency |
Lichterhalt 6000h | LMF >= 0,90* | Lumen Maintanance 6000h |
R4 | WW: 81 / NW: 83 / DW: 83 / CW: 84* | R4 |
R9 | WW: 9 / NW: 14 / DW: 6 / CW: 14* | R9 |
R15 | WW: 74 / NW: 77 / DW: 77 / CW: 77* | R15 |
CRI | CRI Ra > 85* | CRI |
LED-Lebensdauer | 30.000 h (L70B50)* | LED-Life |
Schaltzyklen (ein/aus) | > 100.000* | Switch Cycles (on/off) |
Stroboskopeffekt | SVM < 0,4* | Stroboscopic effect |
Flimmern | Pst LM < 1* | Flicker |
Blendschutz | nein - no | Anti-glare shield |
LED-Versorgung | 40 - 48 VDC - 350 mA | LED-Supply |
Verwendetes Netzteil | Marke / Typ brand / model Meanwell | Built in driver |
Klassen | IP65, IK10, Iso-I | Classes |
Abmessungen | 442 x 883 x 200 mm (L x B x H) - ( L x W x H) | Sizes |
Gewicht | 30 kg | Weight |
Betriebsbereich | -20°C - + 40°C – 10-90% rH | Work Conditions |
Hinweise | Nicht an elektronischen Vorschaltgeräten oder Dimmern betreiben. Irrtum und Schreibfehler vorbehalten. Technische Daten zur Produktverbesserungen können ohne Voranmeldung geändert werden. - Do not connect to electronic ballast or dimmers. Subject to errors and typing errors. Technical data for product improvements can be changed without prior notice | Notes |
* | Messdaten unterliegen den typischen Schwankungen von Serienfertigung - Measure data are subject to the typical fluctuations in series production | * |
Normen | CE-Konformität / CE-conformity nach / acc to: EN55015:2013, EN60598-1:2009, EN60598-2-2:2012, EN60968:1990, EN60969, EN61000-3-2/2006, EN61000-3-3:2013, EN 61547:2013, EN62031:2013, EN62471:2008, EN62493:2010, EN62560:2012, ErP 2009/125/EU, NRS 2014/358/EU, EMV 2014/30/EU, RoHS 2011/65/EU, 2017/1359, EU2019-2015 | Standards |
Herstellerinformationen | Asmetec GmbH - Carl-Benz-Str. 4 - 67292 Kirchheimbolanden - Germany - www.asmetec.de - info@asmetec.de - WEEE DE74399040 | Manufacturer Information |
Hinweise | Notes |
Verwendungszweck | Application |
LED-Fluter für allg. industrielle Beleuchtungsanwendung im Innen- und Außenbereich | LED-Flood light for common lighting application indoor and outdoor |
Besonderheiten | Specials |
LED-Fluter in stabilem Alu-Druckgußgehäuse IP65, bruchfestes Frontglas, integriertes Konstantstromnetzteil, kurzschlußfest | LED-flood light in robust cast aluminium housing IP65, tensioned front glass, integrated constant current driver, short break protected |
Installation | Installation |
Decken-, Wand oder Stativmontage | Ceiling- wall- or stand mounting |
Hinweise | Notes |
Wie bei allen LED-Leuchtmitteln ist auf ausreichende Luftzirkulation zu achten, damit die LED-Lampe nicht überhitzt. Die Gesamtenergieeffizienz und Lichtverteilung dieses LED-Leuchtmittels wird von der Bauart der Lichtanlage bestimmt, in der es verwendet wird. Messdaten unterliegen üblichen Toleranzen. Daten gem. Asmetec-Labor bzw. nach Werksangaben sowie. EU 874/2012, 2010//30/EU, 2011/65/EU | As with all LED-Lights take care for sufficient air ventilation to prevent LED overheating. The total efficiency and light distribution of this LED depends on the structure of the luminaire where it is used in. Technical data subject common tolerances. Measure data acc. Asmetec Test lab or original manufacturer data and acc. EU 874/2012, 2010//30/EU, 2011/65/EU |
Entsorgung | Waste Treatment |
LED-Leuchtmittel enthalten Wertstoffe. Bitte geben Sie die Lampen nach Gebrauch beim Wertstoffhof ab oder senden Sie sie an Asmetec zum Recycling zurück. | LED-lamps contain valuable raw materials. Please dispose them after use at the Local Court of Value Materials or return them for free disposal to Asmetec. |
Hinweis zu den technischen Daten | Technica Data Notes |
Technische Daten unterliegen den üblichen Schwankungen. Sie können ohne Vorankündigung zur Produktverbesserung geändert werden. Produktabbildungen dienen nur zur näherungsweisen Darstellung. Die Produkte können im Aussehen leicht abweichen. | Technical data subject to the usual deviations. They may be modified for improvement without prior notice. Images are only for the approximate representation. Products may differ slightly. |
Prüfberichte | Test Reports |
Individuelle Prüfberichte zu colorimetrischen, photometrischen und elektrischen, elektromagnetischen Daten erstellen wir auf Wunsch im eigenen Labor. | Individual test reports for colorimetric, photometric, electrical and electromagnetical data upon request made in own lab. |
